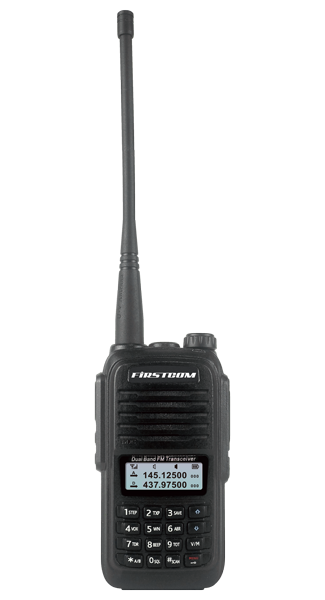

FC-77R
Round Form Design
VHF/UHF FM TRANSCEIVER
・Round Concept Design
・Good Grip Feeling
・Dual Line Display
・Dot Matrix Display
・Full Feature equipped
spec
| General | FC-77R |
|---|---|
| Frequency Range | 136-174MHz / 400-470MHz |
| Memory Channels | 128 |
| Battery Capacity | 1800mAh |
| Dimensions | 62 x 118 x 39mm |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | 0.2μV |
| Adjacent Channel Selectivity | 60dB |
| Intermodulation | 60dB |
| Audio Output`<5% Distortion | 1W |
| Transmitter | |
|---|---|
| Output Power | 5W / 1W |
| Max. Frequency Deviation | ±5kHz/±2.5kHz |
| Adjacent Channel Power | ≦-65dB/≦-60dB |
| Spurious and Harmonics | <-60dB |
