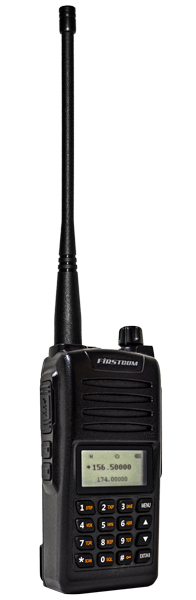

FC-220R
Smart Use
VHF/UHF FM TRANSCEIVER
・EASY USER INTERFACE
・DUAL LINE OPERATION
・FULL DOT DISPLAY
・COMMERCIAL FM RADIO BAND
・FULL FEATURE EQUIPPED
spec
| General | FC-220R |
|---|---|
| Frequency Range | 136-174・400-480MHz |
| Memory Channels | 128 |
| Channel Spacing | 12.5/25kHz |
| Battery Capacity | 1800mAh |
| Dimensions | 60 x 116 x 41.5mm |
| Receiver | |
|---|---|
| Sensitivity (12dB SINAD) | 0.15μV |
| Adjacent Channel Selectivity | 65dB |
| Intermodulation | 60dB |
| Spurious Rejection | ≦60dB |
| Audio Output`<5% Distortion | 1W |
| Transmitter | |
|---|---|
| Output Power | 5W / 1W |
| Max. Frequency Deviation | ±5kHz / ±2.5kHz |
| Adjacent Channel Power | ≦-65dB/≦-60dB |
| Spurious and Harmonics | <-60dB |
